Glass Jackets
Glass Jackets can be used in a maximum operating pressure of
0.5 bar and a maximum operating temperature of 150°
C.

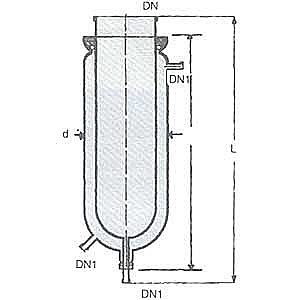

| Cat. Ref. |
Nominal Capacity |
DN | DN1 | d | L | J |
| VZD5/4 VZD10/6 VZD20/9 VZD50/12 |
5
L 10 L 20 L 50 L |
100 150 225 300 |
25 25 25 40 |
150 225 300 400 |
700 700 750 1000 |
550 550 600 850 |
These vessels can also be supplied with metal jackets. Metal Jackets can be used in a maximum operating pressure of 2.0 bar and a maximum operation temperature of 150° C.
| Cat. Ref. |
Nominal Capacity |
DN | DN1 | d | L | J |
| VZJ5/4 VZJ10/6* VZJ20/9 VZJ50/12 |
5
L 10 L 20 L 50 L |
100 150 225 300 |
25 25 25 40 |
135 188 262 345 |
700 700 750 1000 |
550 550 600 850 |
|
* marked items are available fast. |
||||||
