Following units, which have a regular demand, are constructed using the
components described in this catalogue. We supply these units as a
package complete with necessary valves, pipeline and tubular supporting
structure.

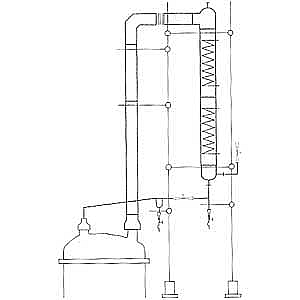

These units consist of a series of coil condensers, a vapour pipeline, an adaptor plate for a leakproof fitting with reactor's nozzle, and a reflux pipeline.
| Cat. Ref. | Reactor Size |
Vapour Pipeline |
Condenser | Reflux Pipeline |
| GRU250 GRU500 GRU1000 GRU2000 GRU3000 |
250L 500L 1000L 2000L 3000L |
80mm 100mm 100mm 150mm 150mm |
1.5m²x2 1.5m²x2 2.5m²x2 2.5m²x3 4.0m²x2 |
25mm 25mm 40mm 40mm 40mm |
