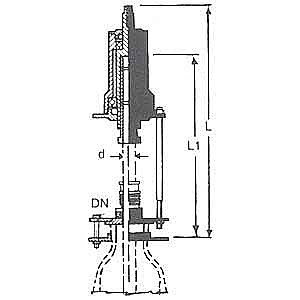

| This unit is
suitable for use under corrosive conditions.
Only glass and PTFE are exposed to process
fluids. Bellow seal can be used under vacuum
down to 10mm Hg absolute. Mechanical seal can be
used under vacuum 1mm Hg absolute or under pressure
permitted into glass vessels. Generally a
reducer is required to connect the chuck and seal to
top neck of the vessel.
|
Cat.
Ref.
Bellow
Seal |
Cat.
Ref.
Mechanical
Seal |
Vessel |
DN |
L |
L1 |
d |
CSA1
CSA1.5* |
CSM1
CSM1.5* |
20
L
50, 100, 200 L |
50
80 |
300
360 |
250
300 |
25
47 |
* marked items are available fast. |
|
