- Higher cross section area.
- More packing height.
- No separate inventory of column sections.
- Delivery period of pipe section are shorter.

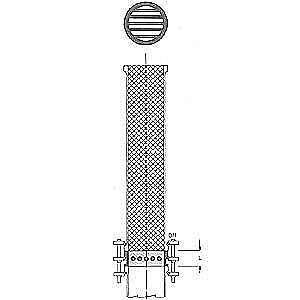

This assembly consists of a glass support plate, a metal flange, a PTFE
'O' ring and nut-bolts.
| Cat. Ref. | DN | L | Cross Section Area |
Max. Load Kgs. |
Suitable Packing Size |
| LBE3* LBE4* LBE6* LBE9* LBE12* |
80 100 150 225 300 |
25 25 50 50 50 |
0.7 0.7 0.7 0.8 0.8 |
20 30 60 90 150 |
12 15 25 25 25 |
* marked items are available fast. |
|||||
