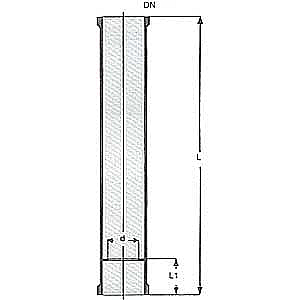

Column sections are provided with fused shelf where packing support can rest.
| Cat. Ref. | DN | L | L1 | Minimum Packing Size |
Usual Packing Size |
| CS3/1000 CS4/1000 CS6/1000 CS6/1500 CS9/1000 CS9/1500 CS12/1000 CS12/1500 CS16/1000 CS16/1500 CS18/1000 CS18/1500 CS24/1000 |
80 100 150 150 225 225 300 300 400 400 450 450 600 |
1000 1000 1000 1500 1000 1500 1000 1500 1000 1500 1000 1500 1000 |
100 100 125 125 125 125 125 125 150 150 150 150 200 |
9 12 15 15 20 20 25 25 25 25 25 25 40 |
12 15 25 25 25 25 25 25 25 25 25 25 40 |
