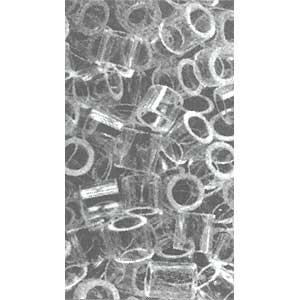

Column Packing - Raschig Rings

Raschig rings up to 25mm are of neutral glass. 40mm and 50mm raschig rings are available only in Borosilicate glass.

Cat. Ref.	Size	Bulk Density Kg/Ltr	Specific Surface m˛/mł	Glass
FC9 FC12 FC15* FC25* FCB40 FCB50	9x9 12x12 15x15 25x25 40x40 50x50	0.6 0.5 0.4 0.3 0.3 0.32	500 400 300 200 160 120	Neutral Neutral Neutral Neutral Borosilicate Borosilicate
Packings require for various pipe sections (Kgs.)
Pipe Section	Packing Size
Pipe Section	Vol (L)	FC	FC 12	FC 15	FC 25	FCB 40	FCB 50
PS3/1000 PS4/1000 PS6/1000 PS9/1000 PS12/1000 PS16/1000 PS18/1000 PS24/1000	5 8 18 37 66 125 165 295	3 - - - - - - -	3 4 9 - - - - -	2 3 7 15 17 - - -	- 3 7 15 30 65 90 -	- - - 15 25 50 65 115	- - - - - 53 70 125
Notes of use of Column Packing - Due to their low bulk densities, glass raschig rings are particularly suitable for packing glass columns. - Generally, the ratio of column diameter to packing diameter should not be less than 8:1 - When using smaller packing size, a small layer of larger packing should be used on packing falling through. - In vacuum application and applications involving high vapour velocities, packing may be lifted and may damage other parts. To prevent this, a packing retainer (PTFE perforated plates) should be used above the packed section.
