Packing Supports

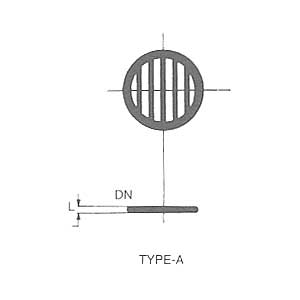

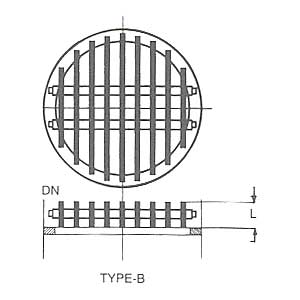

Packing supports Type A are made of fused glass rods.  Packing supports Type B (heavy duty) are made of glass plates vertically arranged and tied with PTFE tie rods.

Cat. Ref. DN L Cross
Section
Area		 Max.
Load
Kgs.		 Minimum
Packing
Size		 Type
CP3
CP4
CP6
CP9
CP12

HD16
HD18
HD24

 80
100
150
225
300

400
450
600

 10
12
12
19
19

70
70
95

 45%
5%
55%
6%
65%

7%
7%
7%

 10
15
30
50
75

150
200
300

 12
15
25
25
25

25
25
40

 A
A
A
A
A

B
B
B
