Reflux dividers are used to take off the distillate from the
column. Usually a valve is to be fitted on distillate outlet which
controls the reflux coarsely.

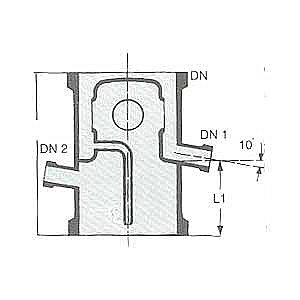

| Cat. Ref. | DN | DN1 | DN2 | L | L1 | Free Cross Section Cm² |
Max. Product L/hr |
| RDA3 RDA4 RDA6 RDA9 RDA12 RDA16 RDA18 |
80 100 150 225 300 400 450 |
25 25 25 25 25 40 40 |
25 25 25 25 25 40 40 |
200 250 250 375 375 500 600 |
100 150 150 150 150 200 275 |
20 50 100 150 250 350 500 |
300 500 700 900 1100 1300 1500 |
DN2 is used for insertion of a thermometer pocket. A bellow is recommended on the distillate outlet DN1. |
|||||||
