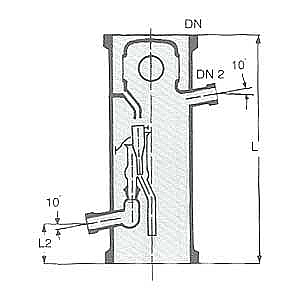

These reflux dividers are to be used with a electro- magnet and a
timer. These have a swinging funnel mechanism which is operated
magnetically from outside to remove the condensate or to return the
reflux. Through this, correct control of reflux-ratio is
possible. Funnel remains at 100% reflux position when magnet is
inactive.
| Cat. Ref. | DN | DN1 | DN2 | L | L1 | Free Cross Section Cm² |
Max. Product L/hr |
| RHM3 RHM4 RHM6 RHM9 RHM12 RHM16 RHM18 |
80 100 150 225 300 400 450 |
25 25 25 25 25 40 40 |
25 25 25 25 25 40 40 |
375 400 450 550 700 800 900 |
75 75 100 100 100 150 150 |
20 50 100 150 250 350 500 |
90 180 300 500 650 1000 1300 |
DN2 is used for insertion of a thermometer pocket. A liquid seal is recommended on the distillate outlet of this reflux divider to prevent the vapour passing directly to the receiver. |
|||||||
