Spray Feed Pipes

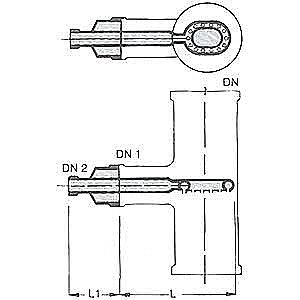

Spray feed pipes are provided with oval tube having holes at the bottom.  These should be used with unequal tees.

Cat. Ref. DN DN1 DN2 L L1 Holes
Size		 Tee
Suitable
FD6
FD9
FD12
FD16
FD18
FD24

150
225
300
400
450
600

80
100
150
150
150
150

25
25
25
50
50
50

225
325
400
500
550
700

125
150
200
200
200
200

27x2mm
27x2mm
30x3mm
39x3mm
39x3mm
60x3mm

PTU6/3
PTU9/4
PTU12/6
PTU16/6
PTU18/6
PTU24/6

Dn refers the nominal diameter of the column.
