These bellows are used in installation of glass equipment for following
purposes:
- to provide safe branching of pipelines from the main glass equipment.
- to accommodate odd degrees and variation in length.
Bellows are supplied along with required bellow flanges and
nut-bolts. Distance locking bolts are provided to avoid excessive
compression or contraction of the bellow. Gaskets are not required
where bellows are used. For drilling details, refer "Bellow
flanges".
Line bellows
These can withstand a temperature of 200°C under normal atmospheric
conditions.

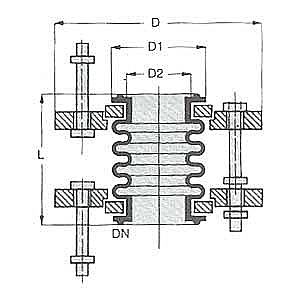

| Cat. Ref. | DN | D | D1 | D2 | L |
| FBN1* FBN1.5* FBN2* FBN3* FBN4* FBN6* FBN9 FBN12* |
25 40 50 80 100 150 225 300 |
95 105 120 155 200 275 350 420 |
41 56 69 98 132 184 258 340 |
31 43 55 82 111 163 230 308 |
60 65 65 65 65 65 65 65 |
* marked items are available fast.
