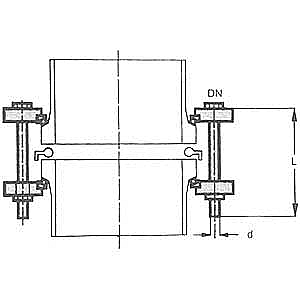

A complete coupling is a set of two backing flanges with insert and
nut-bolts. It is a complete set of flanges require to make a joint.
| Cat. Ref. | DN |
Flanges |
Inserts |
Nuts - Bolts |
||||
| Cat. Ref. | Qty | Cat. Ref. | Qty | d | L | Qty | ||
| CT1* CT1.5* CT2* CT3* CT4* CT6* CT9* CT12* CT16 CT18* CT24 |
25 40 50 80 100 150 225 300 400 450 600 |
CF1 CF1.5 CF2 CF3 CF4 CF6 CF9 CF12 CF16 CF18 CF24 |
2nos 2nos 2nos 2nos 2nos 2nos 2nos 2nos 2nos 2nos 2nos |
CN1 CN1.5 CN2 CN3 CN4 CN6 CN9 CN12 CN16 CN18 CN24 |
2nos 2nos 2nos 2nos 2nos 2nos 2nos 2nos 2nos 2nos 2nos |
5/16" 5/16" 5/16" 5/16" 5/16" 5/16" 3/8" 3/8" 3/8" 1/2" 1/2" |
65 65 75 75 100 100 125 150 150 150 150 |
3nos 3nos 3nos 6nos 6nos 6nos 8nos 12nos 12nos 12nos 12nos |
* marked items are available fast.
