SPINNING-BAND DISTILLATION COLUMN - Manufactured Product Images

    CLICK IMAGES BELOW TO ENLARGE



Final Product Images


1






2

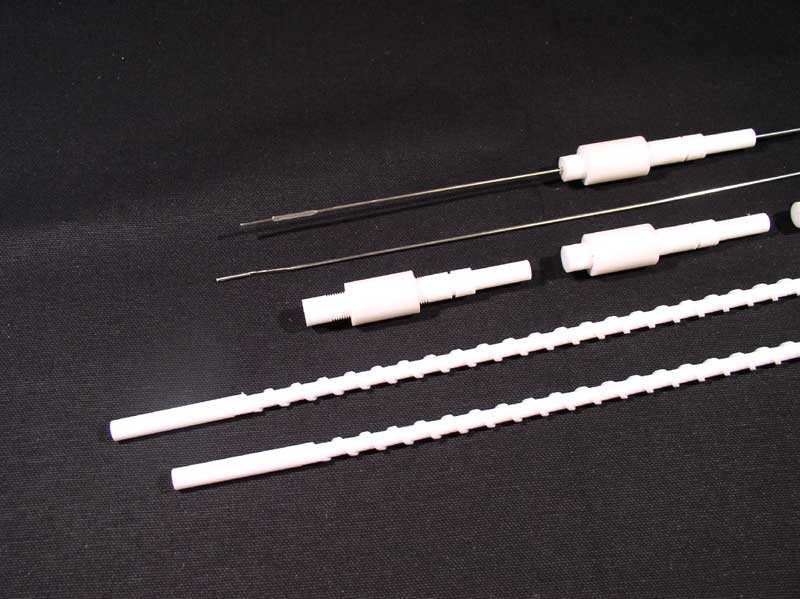

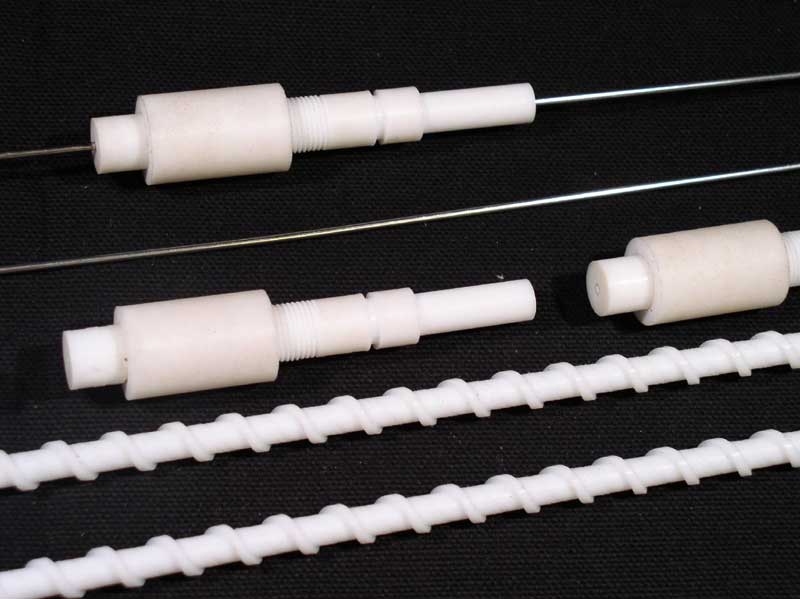

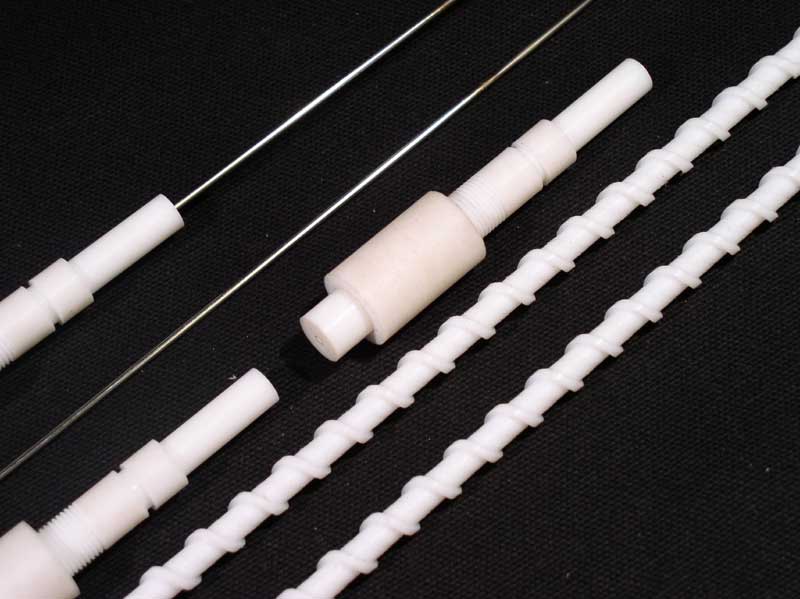

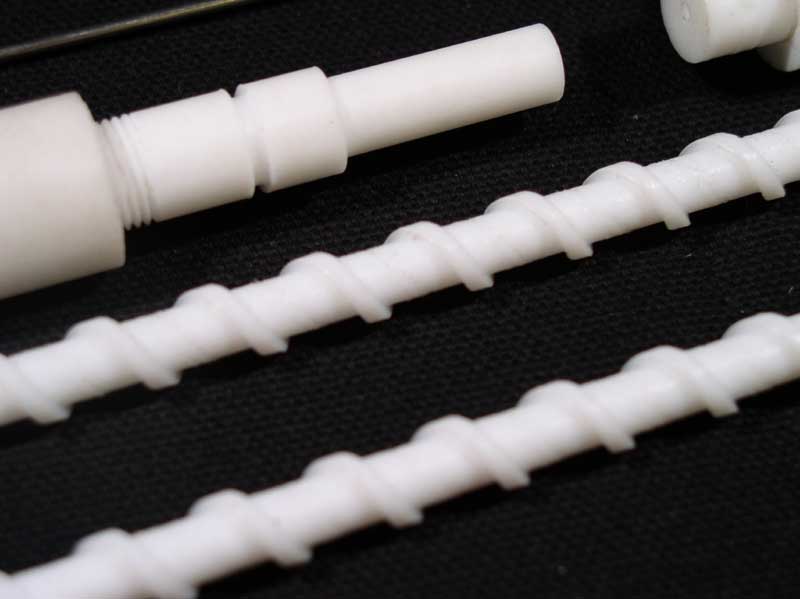

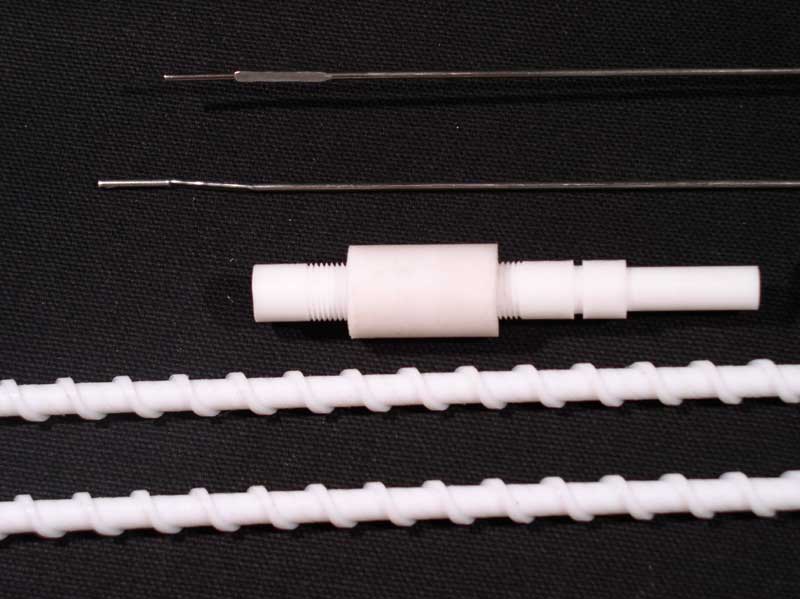

These spinning bands are a single piece design, machine lathed from a solid
rod of PTFE TEFLON, and spiral auger cut to the length of the
column. They have a stainless steel wire press fit into one end for
attachment to a stirring motor.   If needed, we can make a wide range of
bearing assemblies to accommodate your specific glassware.  If you don't
have the glassware, then we can design the whole spinning band column
assembly consisting of the glass column with any connections & port options,
the spinning band, and the bearing/shaft seal assembly.

We only custom make these per order to YOUR requirements.  So tell us what
you need (a replacement band for an existing column - provide dimensions, or
a whole new assembly) and we will provide you with a quote.





3



4




5
