Following units, which have a regular demand, are constructed using the
components described in this catalogue. We supply these units as a
package complete with necessary valves, pipeline and tubular supporting
structure.

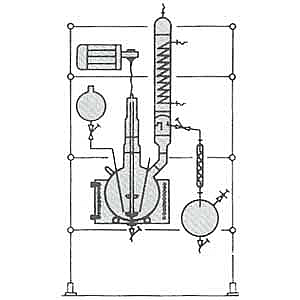

These units consist of a spherical glass reactor, electrical heating and cooling bath, stirring assembly with bellow seal, fix speed flameproof geared motor, addition vessel, coil condenser, manual reflux divider, product cooler and a receiver. These units can be operated under atmospheric pressure and temperature max. 200°C.
| Cat. Ref. Capacity |
Reactor Vessel |
Addition HTA |
Condenser HTA |
Cooler Vessel |
Receiver |
| RDU20 RDU50 RDU100 RDU200 |
20L 50L 100L 200L |
2L 5L 10L 20L |
0.35m² 0.50m² 1.25m² 1.25m² |
0.10m² 0.20m² 0.35m² 0.35m² |
5L 10L 20L 20L |
