Following units, which have a regular demand, are constructed using the
components described in this catalogue. We supply these units as a
package complete with necessary valves, pipeline and tubular supporting
structure.

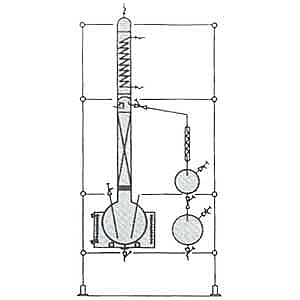

These units consist of a spherical glass reactor, electrical heating and cooling bath, packed column, coil condenser, manual reflux divider, product cooler and a pair of receivers. These units can be operated under vacuum and temperature max. 200°C.
| Cat. Ref. | Reactor Vessel |
Packed Column |
Condenser HTA |
Cooler HTA |
Receivers |
| FDU20 FDU50 FDU100 FDU200 |
20L 50L 100L 200L |
80mmx1m 100mmx1m 150mmx1m 150mmx1m |
0.35m² 0.50m² 1.25m² 1.25m² |
0.10m² 0.20m² 0.35m² 0.35m² |
2L, 5L 5L, 10L 10L, 20L 10L, 20L |
